HEATER ELEMENTS & REPLACEMENT KITS

Packaging -- "Kits" on this page are ALL individually packaged in zip-locks w/hanger hole

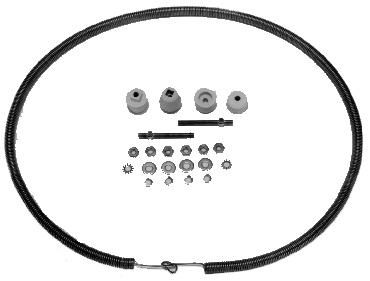

ELEMENT KITS CONTAIN: Element, 2 terminal insulator sets, plated bolts, nuts, washers, etc.

Kits are packaged in Zip-Lock poly bag with a hanger hole.

BASIC KITS ARE LISTED BELOW - FOR OTHER KW'S NOT SHOWN

Just change the number before the "K" to the required amount.

HEATING ELEMENTS AND ELEMENT KITS



MODEL
NUMBER

WATTAGE AT

IN-PLACE LENGTH

240V

208V

MINIMUM

MAXIMUM

1K

2K

3K

4K

5K

6K

1,000

2,000

3,000

4,000

5,000

6,000

750

1,500

2,250

3,000

3,750

4,500

14"

26"

36"

45"

54"

62"

35"

65"

108"

135"

162"

186"

OPTIONS (Add suffixes to model number above)



  SUFFIX

FUSIBLE LINK

in the kit -- specify temperature

F

EXTRA HARDWARE

(9 pieces) for use with fuse links

H

7/16 DIAMETER ELEMENT

(standard is 3/8") L
STAINLESS STEEL terminal hardware is standard
FRAME INSULATORS 1 ea. grooved & ridged, 3/8" & 7/16"(total 4 pieces) also called "through" bushings. T
80/20 WIRE (also called Class A) iron free -- add per KW A
EXTRA LENGTH (in place) -- specify the length X
VOLTAGES ABOVE 240V:
277V 1 to 6 KW only. Use Kit Price of same KW and add: U
380V to 600V (Available to 12KW) V
1-6 KW: Use Kit Price of same KW plus V adder V
7-8 KW: Use Price of (2) 4KW Kits plus V adder V
9-10 KW: Use Price of (2) 5 KW Kits plus V adder V
11-12 KW: Use Price of (2) 6 KW Kits plus V adder V

NOTE: Be sure about 3 phase element orders! Some units are WYE (Star) Wired and are calculated as the total KW for a group of three elements. A WYE connected group of three elements will have one end of each element connected together either by jumper wires in the wiring compartment or bolted together in the framework.

YOU MUST SPECIFY WYE CONNECT for these units and SPECIFY THE GROUP KW.

Price WYE connected sets as 3 Kits. Example: 10KW Kit is priced as (3) 4 KW Kits.

Call us when in doubt. Supply us with as much information as possible, such as:

Number of Elements Nameplate Data
Element O.D.
Element Length
Total OHMS per element even if you have to add up several "pieces".
